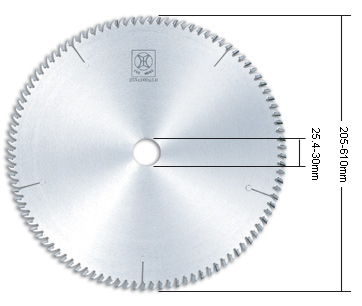

Circular Saw Blades / For Cross Cut YH-01



The saw blade is the five assembler of the left, the right, the left, the right and the flat blades that is suitable to the board cutting, the cross cut, the particle board cutting, and the cutting for the medium density fiberboard (MDF), the high density board, the plywood and the veneered or laminated board, etc. Suitable machines: Double and saw, Automatic double end saw, Radial arm saw and cut-off saw.

O.D NO. OF TEETH THICKNESS BORE
  205Ø   60T 3.0 25.4Ø 30Ø
*255Ø 100T 3.0 25.4Ø 30Ø
*305Ø 100T 3.0 25.4Ø 30Ø
*305Ø 120T 3.0 25.4Ø 30Ø
*355Ø 100T 3.0 25.4Ø 30Ø
*355Ø 120T 3.0 25.4Ø 30Ø
  380Ø 120T 3.2 25.4Ø 30Ø
  405Ø 120T 3.2 25.4Ø 30Ø
*455Ø 120T 3.4 25.4Ø
  505Ø 120T 3.4 25.4Ø
  555Ø 120T 3.4 25.4Ø
  610Ø 120T 3.4 25.4Ø
*205Ø   80T 3.0 25.4Ø
  610Ø   80T 4.0 25.4Ø
  610Ø 120T 4.0 25.4Ø
