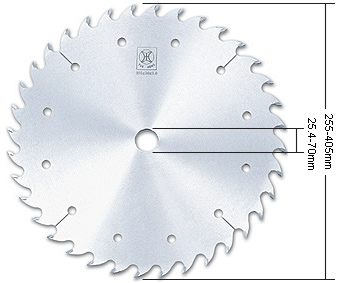

Circular Saw Blades / For Rip and Gang Rip Saw YH-02



For transverse cut.
Teeth pattern: Cross bevel teeth. Applied to the continuous transverse cutting of the soft wood and the hard wood. Suitable machines: Gang rip saw, Straight line rip saw, Four side moulder, Up and down gang rip saw.
O.D NO. OF TEETH THICKNESS BORE
  255Ø 30T 2.2 25.4Ø 50Ø 70Ø
  255Ø 30T 2.6 25.4Ø 50Ø 70Ø
  255Ø 30T 3.0 25.4Ø 50Ø 70Ø
  305Ø 36T 2.6 25.4Ø 50Ø 70Ø
*305Ø 36T 3.0 25.4Ø 50Ø 70Ø
  355Ø 30T 3.2 25.4Ø 50Ø 70Ø
355 36T 3.2 70   Ø
355 36T 3.4 70   Ø
355 36T 3.4 70   Ø
  405Ø 30T 3.4 70   Ø
  405Ø 30T 4.0 70   Ø
