Circular Saw Blades / For Panel Saw YH-03

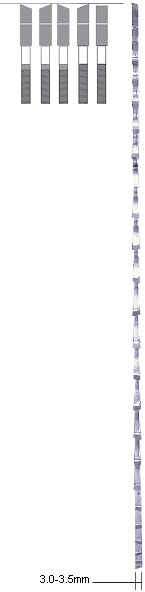

Teeth pattern: The five assemblers of the left, the right, the left, the right and the flat blades. Applied to the overlap cutting for the low density board, the particle board, medium density fiberboard (MDF), the high density board, and the plywood, etc. Suitable machines: Automatic NC panel saw (Asian Model)

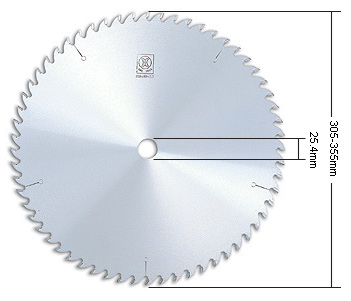

O.D NO. OF TEETH THICKNESS BORE
305Ø 100T 3.0 25.4Ø
355Ø   50T 3.2 25.4Ø
355Ø   60T 3.2 25.4Ø
355Ø   60T 3.5 25.4Ø
355Ø   60T 3.2 25.4Ø
